UPH型密封

所属分类：孔轴双用密封
点击次数：
发布日期：2018-07-06 00:00:00
在线询价

详细介绍

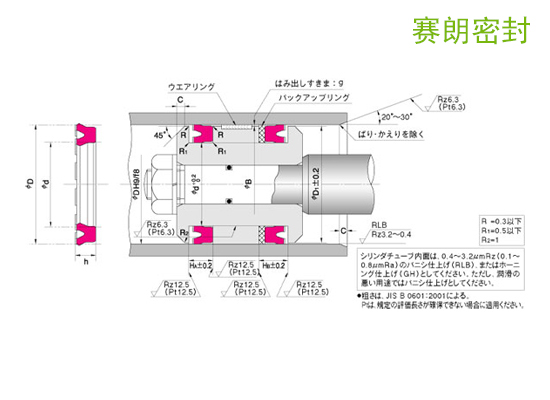

UPH型密封

询价致电：0769-22210391 传真：0769-22217692 手机：13450082237

密封件公称尺寸			腔体尺寸						标准（A505）		耐热（F357）
d	D	h	φd	φD	φD1	HA	HB	C	NOK零件号	名义号	NOK零件号	名义号
6.3	16.3	7.5	6.3	16.3	15.3	8.5	10.5	2.5	CU3308D0	UPH-6.3
6.3	16.3	8	6.3	16.3	15.3	9	11		CU0024D0	UPH-6.3A
7.1	17.1	7.5	7.1	17.1	16.1	8.5	10.5		CU3309D0	UPH-7.1
7.1	17.1	8	7.1	17.1	16.1	9	11		CU0030D0	UPH-7.1A
8	18	7.5	8	18	17	8.5	10.5		CU0042D0	UPH-8
8	18	8	8	18	17	9	11		CU0043D1	UPH-8A	CU0043D2	UPH-8AF
9	19	7.5	9	19	18	8.5	10.5		CU3310D0	UPH-9
9	19	8	9	19	18	9	11		CU0054D0	UPH-9A
10	20	7.5	10	20	19	8.5	10.5		CU0068D0	UPH-10
10	20	8	10	20	19	9	11		CU0069D1	UPH-10A
11.2	21.2	7.5	11.2	21.2	20.2	8.5	10.5		CU3311D0	UPH-11.2
11.2	21.2	8	11.2	21.2	20.2	9	11		CU0081D0	UPH-11.2A
12	25	8	12	25	24	9	11		CU0093D0	UPH-12	CU0093D3	UPH-12F
12.5	22.5	7.5	12.5	22.5	21.5	8.5	10.5		CU3312D0	UPH-12.5
12.5	22.5	8	12.5	22.5	21.5	9	11		CU0102D0	UPH-12.5A
14	24	7.5	14	24	23	8.5	10.5		CU0121D0	UPH-14
14	24	8	14	24	23	9	11		CU0122D0	UPH-14A	CU0122D3	UPH-14AF
15	25	8	15	25	24	9	11		CU0135D0	UPH-15A
15	28	10	15	28	27	11	13		CU0137D0	UPH-15
16	26	7.5	16	26	25	8.5	10.5		CU0156D0	UPH-16	CU0156D2	UPH-16F
	26	8	16	26	25	9	11		CU0157D1	UPH-16A
	32	10	16	32	31	11	13		CU0161D0	UPH-16B
18	28	8	18	28	27	9	11		CU0182D0	UPH-18A	CU0182D4	UPH-18AF
	31	10	18	31	30	11	13	3.5	CU0186D0	UPH-18
	33	10	18	33	32	11	13		CU2196D0	UPH-18B
18.5	31.5	10	18.5	31.5	30.5	11	13		CU3313D0	UPH-18.5
20	30	8	20	30	29	9	11		CU0215D1	UPH-20A	CU0215D2	UPH-20AF
	33	10	20	33	32	11	13		CU0221D0	UPH-20
	35	10	20	35	34	11	13		CU0224D0	UPH-20B
21.5	31.5	8	21.5	31.5	30.5	9	11		CU0239D0	UPH-21.5
22	35	10	22	35	34	11	13		CU0249D0	UPH-22
22.4	32.4	8	22.4	32.4	31.4	9	11		CU0263D0	UPH-22.4A	CU0263D3	UPH-22.4AF
22.4	35.4	10	22.4	35.4	34.4	11	13		CU0265D1	UPH-22.4
25	35	8	25	35	34	9	11		CU0282D2	UPH-25A	CU0282D3	UPH-25AF
	38	10	25	38	37	11	13		CU0288D0	UPH-25
	40	10	25	40	39	11	13		CU0292D0	UPH-25B	CU0292D4	UPH-25BF
	45	12	25	45	44	13	15		CU0301D0	UPH-25C
25.5	35.5	8	25.5	35.5	34.5	9	12		CU0309D0	UPH-25.5
27	40	10	27	40	39	11	14		CU2347D0	UPH-27
28	40	10	28	40	39	11	14		CU0330D2	UPH-28A	CU0330D6	UPH-28AF
	41	10	28	41	40	11	14		CU0335D0	UPH-28
	43	10	28	43	42	11	14		CU0340D0	UPH-28B
30	43	10	30	43	42	11	14		CU0364D0	UPH-30	CU0364D2	UPH-30F
30	45	10	30	45	44	11	14		CU0368D2	UPH-30A	CU0368D8	UPH-30AF
31.5	44.5	10	31.5	44.5	43.5	11	14		CU0385D0	UPH-31.5
31.5	46.5	10	31.5	46.5	45.5	11	14		CU0387D1	UPH-31.5A
32	45	10	32	45	44	11	14		CU2451D0	UPH-32
	46	10	32	46	45	11	14		CU0403D0	UPH-32A
	48	10	32	48	47	11	14		CU0404D0	UPH-32B
34	50	12	34	50	49	13	16		CU0408D0	UPH-34
35	50	10	35	50	49	11	14	4	CU0437D4	UPH-35B	CU0437D5	UPH-35BF
	50	12	35	50	49	13	16		CU0438D0	UPH-35
	51	12	35	51	50	13	16		CU0441D0	UPH-35A
35.5	50.5	10	35.5	50.5	49.5	11	14		CU0456D2	UPH-35.5A	CU0456D6	UPH-35.5AF
35.5	51.5	12	35.5	51.5	50.5	13	16		CU0458D0	UPH-35.5	CU0458D2	UPH-35.5F
38	52	10	38	52	51	11	14		CU0470D1	UPH-38
40	55	10	40	55	54	11	14		CU0505D3	UPH-40A	CU0505D2	UPH-40AF
	56	10	40	56	55	11	14		CU0508D0	UPH-40B
	56	12	40	56	55	13	16		CU0509D0	UPH-40
	60	12	40	60	59	13	16		CU0514D0	UPH-40C
41	56	10	41	56	55	11	14		CU0523D0	UPH-41
45	60	10	45	60	59	11	14		CU0577D5	UPH-45A	CU0577D9	UPH-45AF
	60	12	45	60	59	13	16		CU0578D0	UPH-45B
	61	12	45	61	60	13	16		CU0580D0	UPH-45	CU0580D3	UPH-45F
47	63	12	47	63	62	13	16		CU0591D0	UPH-47
48	63	10	48	63	62	11	14		CU0601D1	UPH-48	CU0601D4	UPH-48F
50	65	10	50	65	64	11	14		CU0631D2	UPH-50A	CU0631D7	UPH-50AF
	66	12	50	66	65	13	16		CU0635D0	UPH-50	CU0635D3	UPH-50F
	70	12	50	70	69	13	16		CU0639D3	UPH-50B	CU0639D4	UPH-50BF
51	71	12	51	71	70	13	16		CU0669D0	UPH-51
53	69	12	53	69	68	13	16		CU3317D0	UPH-53
53	73	12	53	73	72	13	16		CU0683D0	UPH-53A
55	71	12	55	71	70	13	16		CU0704D1	UPH-55
	75	12	55	75	74	13	16		CU0708D2	UPH-55A	CU0708D6	UPH-55AF
	80	15	55	80	79	16	19		CU0712D0	UPH-55B
56	72	12	56	72	71	13	16		CU0727D0	UPH-56	CU0727D2	UPH-56F
56	76	12	56	76	75	13	16		CU0728D1	UPH-56A	CU0728D4	UPH-56AF
60	76	12	60	76	75	13	16		CU0757D1	UPH-60
60	80	12	60	80	79	13	16		CU0761D1	UPH-60A	CU0761D6	UPH-60AF
63	79	12	63	79	78	13	16		CU0791D0	UPH-63
63	83	12	63	83	82	13	16		CU0793D1	UPH-63A	CU0793D3	UPH-63AF
64	80	12	64	80	79	13	16		CU2123D1	UPH-64	CU2123D2	UPH-64F
65	81	12	65	81	80	13	16	5	CU3318D0	UPH-65
65	85	12	65	85	84	13	16		CU0819D1	UPH-65A	CU0819D2	UPH-65AF
67	87	12	67	87	86	13	16		CU0831D0	UPH-67A	CU0831D3	UPH-67AF
67	87	15	67	87	86	16	19		CU3319D0	UPH-67
70	90	12	70	90	89	13	16		CU0862D1	UPH-70A	CU0862D4	UPH-70AF
70	90	15	70	90	89	16	19		CU0864D0	UPH-70	CU0864D2	UPH-70F
71	91	12	71	91	90	13	16		CU0884D1	UPH-71A	CU0884D3	UPH-71AF
71	91	15	71	91	90	16	19		CU0885D0	UPH-71
75	95	12	75	95	94	13	16		CU0910D1	UPH-75A
75	95	15	75	95	94	16	19		CU0911D1	UPH-75	CU0911D2	UPH-75F
80	100	12	80	100	99	13	16		CU0948D1	UPH-80A	CU0948D9	UPH-80AF
80	100	15	80	100	99	16	19		CU0949D2	UPH-80	CU0949D3	UPH-80F
85	105	12	85	105	104	13	16		CU0989D1	UPH-85A	CU0989D3	UPH-85AF
85	105	15	85	105	104	16	19		CU0990D0	UPH-85
90	110	12	90	110	109	13	16		CU1030D3	UPH-90A	CU1030D7	UPH-90AF
90	110	15	90	110	109	16	19		CU1031D0	UPH-90	CU1031D3	UPH-90F
92	112	12	92	112	111	13	16		CU1042D1	UPH-92A
92	112	15	92	112	111	16	19		CU2132D1	UPH-92	CU2132D2	UPH-92F
95	115	12	95	115	114	13	16		CU1056D0	UPH-95A	CU1056D4	UPH-95AF
	115	15	95	115	114	16	19		CU1057D1	UPH-95	CU1057D3	UPH-95F
	120	15	95	120	118	16	19		CU1061D0	UPH-95B
100	120	12	100	120	118	13	16		CU1089D3	UPH-100A	CU1089D7	UPH-100AF
	120	15	100	120	118	16	19		CU1091D0	UPH-100	CU1091D3	UPH-100F
	125	15	100	125	123	16	19		CU1096D0	UPH-100B	CU1096D3	UPH-100BF
105	125	15	105	125	123	16	19		CU1129D2	UPH-105	CU1129D4	UPH-105F
106	126	15	106	126	124	16	19		CU1138D0	UPH-106
110	130	15	110	130	128	16	19		CU1165D1	UPH-110	CU1165D4	UPH-110F
112	132	15	112	132	130	16	19		CU1182D0	UPH-112	CU1182D3	UPH-112F
115	135	15	115	135	133	16	19		CU1198D0	UPH-115
118	138	15	118	138	136	16	19		CU1207D0	UPH-118	CU1207D2	UPH-118F
120	140	15	120	140	138	16	19		CU1224D2	UPH-120	CU1224D1	UPH-120F
125	145	15	125	145	143	16	19	6.5	CU1257D0	UPH-125A
125	150	19	125	150	148	20	23		CU1933D0	UPH-125	CU1933D2	UPH-125F
130	150	15	130	150	148	16	19		CU1284D2	UPH-130A	CU1284D4	UPH-130AF
130	155	19	130	155	153	20	23		CU3320D0	UPH-130
132	152	15	132	152	150	16	19		CU1292D0	UPH-132A
132	157	19	132	157	155	20	23		CU2703D1	UPH-132	CU2703D2	UPH-132F
135	155	15	135	155	153	16	19		CU1305D0	UPH-135B
	160	15.7	135	160	158	17	20		CU3322D0	UPH-135A
	160	19	135	160	158	20	23		CU1960D0	UPH-135
140	160	15	140	160	158	16	19		CU1327D1	UPH-140A	CU1327D4	UPH-140F
140	165	19	140	165	163	20	23		CU1332D2	UPH-140
145	165	15	145	165	163	16	19		CU1344D0	UPH-145A
145	170	19	145	170	168	20	23		CU2348D0	UPH-145	CU2348D1	UPH-145F
150	170	15	150	170	168	16	19		CU1363D2	UPH-150A	CU1363D3	UPH-150AF
150	175	19	150	175	173	20	23		CU1367D0	UPH-150
155	180	15	155	180	178	16	20		CU1391D2	UPH-155B	CU1391D4	UPH-155BF
	180	15.7	155	180	178	17	21		CU3323D0	UPH-155A
	180	19	155	180	178	20	24		CU1393D0	UPH-155
160	185	15	160	185	183	16	20		CU1413D0	UPH-160A
160	185	19	160	185	183	20	24		CU2349D0	UPH-160
165	190	15	165	190	188	16	20		CU1431D0	UPH-165A
165	190	19	165	190	188	20	24		CU3324D0	UPH-165
170	195	15	170	195	193	16	20		CU1448D1	UPH-170A
170	195	19	170	195	193	20	24		CU3325D0	UPH-170
175	200	15	175	200	198	16	20		CU1461D2	UPH-175B	CU1461D3	UPH-175BF
	200	15.7	175	200	198	17	21		CU3326D0	UPH-175A
	200	19	175	200	198	20	24		CU1463D1	UPH-175
180	205	15	180	205	203	16	20		CU1490D0	UPH-180A
180	205	19	180	205	203	20	24		CU1492D0	UPH-180
185	210	15	185	210	208	16	20		CU1504D0	UPH-185
190	215	15	190	215	213	16	20		CU1519D0	UPH-190A	CU1519D2	UPH-190AF
190	215	19	190	215	213	20	24		CU3327D0	UPH-190
199	224	15	199	224	222	16	20		CU1532D0	UPH-199B
	224	15.7	199	224	222	17	21		CU3329D0	UPH-199A
	224	19	199	224	222	20	24		CU1535D0	UPH-199
200	225	15	200	225	223	16	20		CU1547D0	UPH-200A	CU1547D4	UPH-200AF※
200	225	19	200	225	223	20	24		CU2350D0	UPH-200
210	235	18	210	235	233	19	23		CU1579D0	UPH-210
212	237	19	212	237	235	20	24		CU1585D0	UPH-212
215	240	19	215	240	238	20	24		CU3331D0	UPH-215
224	249	19	224	249	247	20	24		CU2926D0	UPH-224※
225	250	18	225	250	248	19	23		CU1625D0	UPH-225A
225	250	19	225	250	248	20	24		CU1626D0	UPH-225
236	261	19	236	261	259	20	24		CU1649D1	UPH-236
250	275	19	250	275	273	20	24		CU1683D1	UPH-250
255	280	19	255	280	278	20	24	8	CU1694D0	UPH-255	CU1694D3	UPH-255F
265	297	24	265	297	295	26	30		CU1714D0	UPH-265
270	300	18	270	300	298	19	23		CU1722D0	UPH-270A
270	300	24	270	300	298	26	30		CU1725D0	UPH-270
280	310	22	280	310	308	24	28		CU2774D0	UPH-280A
280	312	24	280	312	310	26	30		CU2166D0	UPH-280
283	315	24	283	315	313	26	30		CU1918D0	UPH-283
290	320	18	290	320	318	19	23		CU1750D0	UPH-290A
290	320	22	290	320	318	24	28		CU1752D0	UPH-290
300	332	24	300	332	330	26	30		CU2351D0	UPH-300

密封件公称尺寸			腔体尺寸						标准（A505）		耐热（F357）
d	D	h	φd	φD	φD1	HA	HB	C	NOK零件号	名义号	NOK零件号	名义号
310	340	18	310	340	338	19	23	10	CU1772D0	UPH-310A
310	340	22	310	340	338	24	28		CU1773D0	UPH-310
315	347	24	315	347	345	26	30		CU3064D0	UPH-315
320	340	12	320	340	338	13	17		CU2101D0	UPH-320A
320	350	22	320	350	348	24	28		CU1780D0	UPH-320
323	355	24	323	355	353	26	30		CU1784D0	UPH-323
330	355	16	330	355	353	17	21		CU1786D0	UPH-330A
	356	20	330	356	354	22	26		CU1787D0	UPH-330B
	360	22	330	360	358	24	28		CU1789D0	UPH-330
335	355	14	335	355	353	15	19		CU1793D1	UPH-335A
335	367	24	335	367	365	26	30		CU2197D0	UPH-335
340	370	22	340	370	368	24	28		CU1795D0	UPH-340
345	365	14	345	365	363	15	19		CU2243D0	UPH-345
350	370	14	350	370	368	15	19		CU2302D0	UPH-350A
350	380	22	350	380	378	24	28		CU1799D2	UPH-350
355	385	22	355	385	383	24	28		CU1801D0	UPH-355A
355	387	24	355	387	385	26	30		CU1916D0	UPH-355
360	390	22	360	390	388	24	28		CU1803D0	UPH-360
365	395	22	365	395	393	24	28		CU1805D0	UPH-365
368	400	24	368	400	398	26	30		CU1807D0	UPH-368
370	400	23	370	400	398	25	29		CU1810D0	UPH-370A
370	400	25	370	400	398	27	31		CU1811D0	UPH-370
371	396	16	371	396	394	17	21		CU2303D0	UPH-371
375	407	24	375	407	405	26	30		CU3357D0	UPH-375
380	400	15	380	400	398	16	20		CU1813D0	UPH-380A
	410	15	380	410	408	16	20		CU1815D0	UPH-380B
	420	30	380	420	418	32	36		CU2162D0	UPH-380
390	420	22	390	420	418	24	28		CU1818D0	UPH-390
395	425	22	395	425	423	24	28		CU1819D0	UPH-395
400	430	22	400	430	428	24	28		CU1823D0	UPH-400A
	430	25	400	430	428	27	31		CU2007D0	UPH-400B
	432	24	400	432	430	26	30		CU3358D0	UPH-400
420	455	25	420	455	453	27	32		CU1833D0	UPH-420
425	457	24	425	457	455	26	31		CU1917D0	UPH-425
430	470	20	430	470	468	22	27		CU1837D0	UPH-430
435	470	25	435	470	468	27	32		CU1841D0	UPH-435
440	480	35	440	480	478	37	42		CU1843D0	UPH-440
445	470	18	445	470	468	19	24		CU2244D0	UPH-445
450	480	22	450	480	478	24	29		CU1844D0	UPH-450A
450	482	24	450	482	480	26	31		CU3359D0	UPH-450
460	500	20	460	500	498	22	27		CU1850D0	UPH-460
475	507	24	475	507	505	26	31		CU1853D0	UPH-475
480	505	18	480	505	503	19	24		CU2245D0	UPH-480A
490	530	25	490	530	528	27	32		CU1855D0	UPH-490
520	550	17	520	550	548	18	23		CU2189D0	UPH-520A
525	555	15	525	555	553	16	21		CU1860D0	UPH-525
530	570	20	530	570	568	22	27		CU2084D0	UPH-530A
540	560	14	540	560	558	15	20		CU2037D0	UPH-540
570	600	17	570	600	598	18	23		CU2190D0	UPH-570A
600	630	20	600	630	628	22	27		CU2160D0	UPH-600A
	630	28	600	630	628	30	35		CU2036D0	UPH-600B
	640	30	600	640	638	32	37		CU1868D0	UPH-600
640	685	25	640	685	683	27	32	12	CU2284D0	UPH-640
700	730	15	700	730	728	16	21		CU1873D0	UPH-700A
760	800	34	760	800	798	36	41		CU1877D0	UPH-760
768	800	30	768	800	798	32	37		CU1878D0	UPH-768
818	850	24	818	850	848	26	31		CU1882D1	UPH-818
825	850	15.5	825	850	848	16.5	21.5		CU1883D0	UPH-825A
825	860	27	825	860	858	29	34		CU2124D0	UPH-825
925	950	14	925	950	948	15	20		CU2325D0	UPH-925
950	980	20	950	980	978	22	27		CU1892D0	UPH-950
1020	1050	18	1020	1050	1048	19	24		CU1894D0	UPH-1020A
1025	1055	15	1025	1055	1053	16	21		CU1895D0	UPH-1025
1100	1140	20	1100	1140	1138	22	27		CU2192D0	UPH-1100
1220	1280	30	1220	1280	1278	32	37		CU1899D0	UPH-1220
1560	1600	20	1560	1600	1598	22	27		CU2191D0	UPH-1560
1620	1680	30	1620	1680	1678	32	37		CU1904D0	UPH-1620
